Lift Gates
SafeGuard Multileaf Gate
Renowned for strength and attractive appearance — suitable for both goods and passenger lift applications, with a small bunch depth ideal when maximum car depth is important.
Product Overview

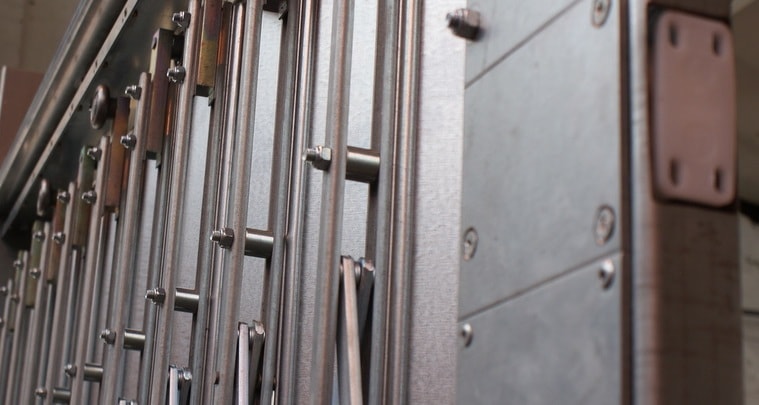

Earlswood Safeguard Multi Leaf shutter gates are renowned for their strength and attractive appearance. Suitable for both goods and passenger lift applications, their relatively small bunch depth mean they are the ideal choice when maximum car depth is important.
The custom made panels make up this very unique structure, which adds a real distinctive look to any lift.
Standard Specification
Gate BodyDouble heavy duty 16mm vertical picket channel construction interconnected by solid steel lattice work. Top hung using hardened steel convex bearings connected to pickets by solid steel pulley blocks. Bottom track uses specially cast steel guides. Galvanised finish as standard.
Leading EdgeFabricated from double heavy duty 16mm vertical picket channels with full length 1.2mm galvanised steel plates either side. Large bow handle car/landing side and recessed handle shaft side fitted as standard. Recessed Mathews catches, interlock beak preparation and key operated mortice lock preparation all optional extras.
Gate PanelsFormed from 1.2mm galvanised sheet with a heavy duty 16mm vertical picket channel riveted to the front edge for extra strength. Four 1.2mm formed galvanised slider strips fitted over the length of each panel to interconnect the sections.
Top Track SectionConstructed from two 3mm formed galvanised steel sections bolted together using 6mm fixings. Dimensions: 90mm deep x 69mm wide. Supplied with 25mm packing shims as standard.
Bottom Track Section3mm galvanised steel channel. External dimensions: 25mm deep x 25mm wide as standard. Heavy duty fabricated bottom tracks available as optional extra.
WeightApproximately 42kgs per m²
Key Features
- Suitable for both goods and passenger lift applications
- Small bunch depth — ideal when maximum car depth is required
- Custom made panels for a distinctive, attractive appearance
- Double heavy duty 16mm vertical picket channel construction
- Hardened steel convex bearings for smooth, reliable operation
- 1.2mm galvanised slider strips interconnect each panel section
- Galvanised finish as standard for long-term durability
Optional Extras
- Vision panel
- Mathews catch
- Interlock preparation
- VL10 or VL11 interlocks
- Car gate switch
- Sub-frames
- Key operated mortice lock
- Stainless steel finish
- Polyester powdercoat finish
- Heavy duty fabricated bottom tracks
Request a Quote
Contact our technical team for pricing, sizing information and lead times.
Get in Touch 020 8595 3060
